Descrition:
Metal Jacketed Gasket is made of graphite, ceramic, non-asbestos etc. filler covered with thin metal jacket, such as stainless steel, carbon steel, copper etc. By their sealing efficiently, provide outstanding resilience, while the metal jacket guarantees excellent sealing and protects the filler against pressure conditions, fluctuating temperatures and corrosion.
By their sealing efficiently, provided by exerting strong pressure on circular rimes of the flanges, metal-jacketed gaskets can stand up to 30% deviation from the initial thickness, which is very useful in case of irregular or faulty flange rims. The chemical compatibility of the metal and the medium being sealed should be considered.
Applications:
Metal Jacketed Gasket is particularly suitable for sealing flat surfaces of heat exchanges, gas pipes, cast iron flanges, cylinder heads of engines as well as for boilers and other vessels.
Specifications:
Style:
|
Model No.
|
Style
|
Section
|
|
SL-G1234S
|
Single Jacketed Gasket
|
|
|
SL-G1234SO
|
Single-Jacketed Overlap
|
|
|
SL-G1234D
|
Double Jacketed Gasket
|
|
|
SL-G1234DC
|
Double Jacketed Corrugated Gasket
|
|
|
SL-G1234DM
|
Double Jacketed Corrugated Gasket With A Corrugated Metal Filler
|
|
|
SL-G1234C
|
French Type Gasket
|
|
Material Choice:
|
Jacket Metal
|
Filler
|
|
CS/Soft Iron
|
ASBESTOS
|
|
SS304, SS304L
|
GRAPHITE
|
|
SS316, SS316L,SS316TiSS
|
PTFE
|
|
317LSS,321SS,347SS,410SS
|
CERAMIC FIBER
|
|
5Cr-0.5Mo(F5),MONEL 400,NICKEL 200
|
|
|
INCONEL 600 625
|
|
|
INCOLOY 800 825
|
|
|
TITANIUM
|
|
|
HASTELLOY B2/B3
|
|
|
HASTELLOY C276
|
|
|
HASTELLOY C22
|
|
|
ALUMINUM
|
|
|
COPPER
|
|
|
BRONZE
|
|
|
DUPPLEX 31803/32205
|
|
|
ALLOY 20
|
|
|
OTHERS
|
|
Competitive Advantage:
High quality , good service, Comprehensive material supply
|
|

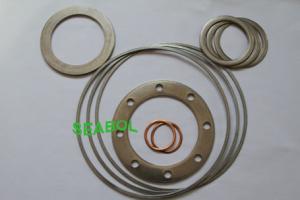

Metal Jacketed Gasket/Double Jacketed Gasket/Metal Washer Images
|
